The X3D-tuning halo board
X870E Aorus Xtreme X3D AI Top
Gigabyte's AM5 halo: 24+2+2 110A phases, dual 10GbE, five M.2, an LCD Edge View - and X3D Turbo Mode marketing to take with salt.
Our verdict
The Xtreme X3D AI Top is the other true AM5 halo board, and reviewers split exactly as you would expect: Tom's Hardware called it one of the best X870E flagships available with a single con - the price - while NoobFeed dubbed it 'the most overengineered motherboard ever.' Both are right. The X3D Turbo Mode 2.0 headline feature delivers only modest measured gains.
Best for: Money-no-object AM5 workstations and 9950X3D showcase builds.
Skip it if: You are buying the X3D badge for frames - the measured gains fall short of the marketing.
Gigabyte X870E Aorus Xtreme X3D AI Top
AMD X870E · AM5 · EATX · DDR5
$1,070.99
Tracked range: $1,070.99 - $1,070.99
Today's price is at or near the lowest we have tracked - a reasonable time to buy.
Chipset
X870E
Socket
AM5
Form factor
EATX
RAM
4x DDR5 to 192GB
Full specifications
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Processors |
|---|---|
| Socket | AMD Socket AM5 |
| Chipset | AMD X870E |
| Power / VRM | 24+2+2 phase digital VRM with 110A Smart Power Stages |
| Memory | 4x DDR5 DIMM, up to 256GB, up to DDR5-9000 (OC); EXPO and XMP |
| PCIe Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 5.0 x8 (shares bandwidth), 1x PCIe 4.0 x4 |
| M.2 Slots | 5 total: 2x PCIe 5.0 x4 (one shares with USB4), 2x PCIe 4.0 x4, 1x PCIe 4.0 x2 |
| SATA | 2x SATA 6Gb/s |

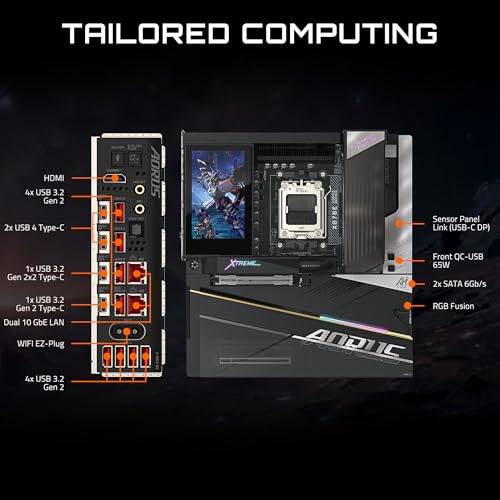

| Rear USB | 12 ports: 2x USB4 Type-C (40Gbps, DP-Alt), 1x 20Gbps Type-C, 1x 10Gbps Type-C, 8x 10Gbps Type-A |
| Networking | 2x Realtek 10GbE LAN; Wi-Fi 7 (320MHz) + Bluetooth 5.4 |
| Audio | ESS ES9280AC DAC + 2x ESS ES9080, DTS Sound Unbound, optical S/PDIF |
| Form Factor | E-ATX, 30.5 x 28.5 cm |
Transcribed from the manufacturer's official spec sheet - always confirm details there before buying.
Why buy it
- 24+2+2 phase 110A power delivery - among the strongest on AM5
- Dual 10GbE LAN and dual USB4 - workstation-grade I/O
- Five M.2 slots and the LCD Edge View status display
Think twice if
- $1,070.99 - the only con Tom's Hardware listed
- X3D Turbo Mode 2.0 gains are modest versus the marketing claims
- Only two SATA ports, and extras like the DDR Wind Blade feel over-engineered
What reviewers say
Tom's Hardware
4/5 starsCalls it one of the best X870E flagships available, improving on the original Xtreme with more M.2 slots, dual 10 GbE, the LCD Edge View display, and robust power delivery. The only listed con is its flagship price of $1,070.99.
Full review ↗Club386
4.5/5 - RecommendedAn impressively engineered, stylish flagship with abundant connectivity and solid firmware, but the four-figure price limits its appeal and X3D Turbo Mode 2.0 delivers only modest real-world gains that fall short of marketing claims, with extras like the DDR Wind Blade feeling over-engineered.
Full review ↗NoobFeed
Dubs it 'the most overengineered motherboard ever' - excessive, unnecessary, and over-the-top, yet a marvel of design and capability for high-end enthusiasts; concludes it is not practical and few will ever need or afford it.
Full review ↗Build around it
A full build starting from this board - picks computed from our live catalog, matched to the board's budget class.
CPU
AMD Ryzen 7 9800X3D
The strongest gaming CPU we track for AM5 - score 99/100 at ~$450.
GPU
NVIDIA RTX 5090
The ceiling pairing - a board this far up the stack deserves the fastest card we track. Score 99/100 at ~$3,600.
RAM
Crucial Pro DDR5-6000 CL36 32GB (2x16GB)
DDR5-6000 CL36, 2x16GB - the cheapest kit on the X870E sweet spot at ~$395. Faster kits are mostly wasted money here.
Case
This is an E-ATX board and E-ATX support is NOT a given - many mid-towers stop at ATX. Filter for cases that explicitly list it.
Find an E-ATX case →Frequently Asked Questions
What CPUs does the X870E Aorus Xtreme X3D AI Top support?
It uses the AMD X870E chipset on the AM5 socket. That means AMD Ryzen 7000, 8000, and 9000 series desktop CPUs, including X3D gaming chips. Check any specific pairing with our free bottleneck checker before you buy.
What RAM should I put in the X870E Aorus Xtreme X3D AI Top?
It takes DDR5 in 4 slots (up to 192GB). The sweet spot on X870E is DDR5-6000 CL30 for the 1:1 Infinity Fabric ratio - faster kits cost more for little real-world gain. Our RAM advisor picks a kit for your exact use.
Will the X870E Aorus Xtreme X3D AI Top fit my case?
It is an EATX board. E-ATX needs a case that explicitly lists E-ATX support - many mid-towers do not. Our case finder filters cases by the form factors they actually take.
How much does the X870E Aorus Xtreme X3D AI Top cost?
As of our last price check it was $1,070.99. Across our tracking it has ranged from $1,070.99 to $1,070.99. The price on the retailer page is the real one.
