The one people will ask about

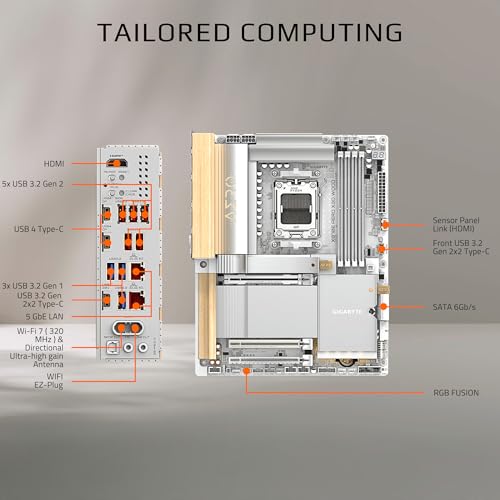

X870E Aero X3D Wood
Real wood accents on the heatsinks, a white/silver PCB and white lighting. A high-end AM5 board that does not look like anything else on the shelf.
Our verdict
Nobody buys the Aero X3D Wood on spec - you buy it because no other board looks like this, and the engineering underneath happens to be excellent. Performance and thermals are genuinely top-tier for the class. If the aesthetic does not move you, Gigabyte's own Aorus boards give you more features for less money.
Best for: Showcase white and natural-tone builds where the board is visible and part of the design.
Skip it if: You are choosing on price-to-features - the wood is what you are paying for.
Chipset
X870E
Socket
AM5
Form factor
ATX
RAM
4x DDR5 to 192GB
Full specifications
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Processors |
|---|---|
| Socket | AMD Socket AM5 |
| Chipset | AMD X870E |
| Power/VRM | 16-phase CPU + 2-phase SOC + 2-phase MISC (60A stages, per TechPowerUp's teardown) |
| Memory | 4x DDR5 DIMM, dual channel, up to 256GB, up to DDR5-9000 (OC), AMD EXPO and Intel XMP support |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 5.0 x16 at x8 (shares bandwidth for x8/x8), 1x PCIe 4.0 x16 at x4 (chipset) |
| M.2 Slots | 4 total: 2x PCIe 5.0 x4 from CPU (one shares bandwidth with the USB4 controller), 2x PCIe 4.0 x4 from chipset |
| SATA | 4x SATA 6Gb/s (RAID 0/1/10) |
| Rear USB | 11 ports: 2x USB4 Type-C (40 Gbps, DP out), 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 5x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1 |
| Networking | 2x Realtek 5GbE LAN; MediaTek Wi-Fi 7 MT7927 (320 MHz) + Bluetooth 5.4 |
| Audio | Realtek ALC1220 codec, 7.1-channel HD audio, S/PDIF Out |
| Rear I/O Extras | Power, reset, Clear CMOS and Q-Flash Plus buttons; HDMI 2.1 port |
| Form Factor | ATX, 30.5 x 24.4 cm |
Transcribed from the manufacturer's official spec sheet - always confirm details there before buying.
Why buy it
- Genuinely unique wood-and-white aesthetic for showcase builds
- Excellent benchmarks with some of the best SSD/VRM temperatures tested
- Dual USB4, dual 5GbE and Wi-Fi 7 for under $500
Think twice if
- Gigabyte's own Aorus Pro X3D Ice offers more features for ~$50 less
- One Gen5 M.2 shares lanes with the USB4 controller
- Last-gen ALC1220 audio codec on a $450+ board
What reviewers say
TweakTown
95% - Editor's Choice'The GIGABYTE X870E Aero X3D Wood is simply stunning. Add to that a great feature set and strong performance and it justifies its $499 price.' Criticisms: X3D Turbo Mode 2.0 is not all that impressive, a dated audio codec, and no USB power delivery.
Full review ↗TechPowerUp
RecommendedPraised as 'an absolutely beautiful motherboard' with excellent benchmark results, some of the best SSD/VRM temperatures TPU has seen, and minimal PCIe bandwidth sharing. Criticized because Gigabyte's own cheaper X870E Aorus Pro X3D Ice offers more features for about $50 less, the second PCIe 5.0 M.2 slot lacks underside cooling, and the EFI/software trail ASUS and MSI.
Full review ↗Tom's Hardware
4/5 stars - Editor's Choice'Gigabyte's X870E Aero X3D Wood pairs a standout wood-themed design with strong features and excellent performance... one of the most compelling high-end white motherboards available.' Cons noted: M.2/USB4 lane sharing and a last-gen audio codec.
Full review ↗Build around it
A full build starting from this board - picks computed from our live catalog, matched to the board's budget class.
CPU
AMD Ryzen 7 9800X3D
The strongest gaming CPU we track for AM5 - score 99/100 at ~$450.
GPU
NVIDIA RTX 5080
High-end performance without flagship pricing - the same logic as the board. Score 93/100 at ~$1,250.
RAM
Crucial Pro DDR5-6000 CL36 32GB (2x16GB)
DDR5-6000 CL36, 2x16GB - the cheapest kit on the X870E sweet spot at ~$395. Faster kits are mostly wasted money here.
Case
Phanteks XT PRO
Takes ATX with 435mm of GPU clearance - an airflow pick at ~$60.
Frequently Asked Questions
What CPUs does the X870E Aero X3D Wood support?
It uses the AMD X870E chipset on the AM5 socket. That means AMD Ryzen 7000, 8000, and 9000 series desktop CPUs, including X3D gaming chips. Check any specific pairing with our free bottleneck checker before you buy.
What RAM should I put in the X870E Aero X3D Wood?
It takes DDR5 in 4 slots (up to 192GB). The sweet spot on X870E is DDR5-6000 CL30 for the 1:1 Infinity Fabric ratio - faster kits cost more for little real-world gain. Our RAM advisor picks a kit for your exact use.
Will the X870E Aero X3D Wood fit my case?
It is an ATX board. Our case finder filters cases by the form factors they actually take.
How much does the X870E Aero X3D Wood cost?
As of our last price check it was $446.74. The price on the retailer page is the real one.
