The mid-range AM5 staple

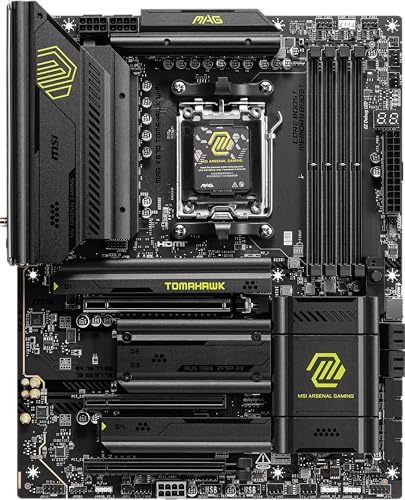

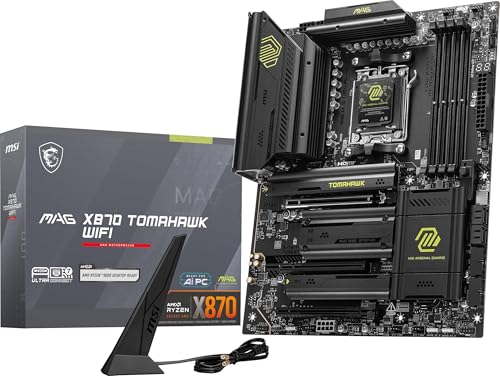

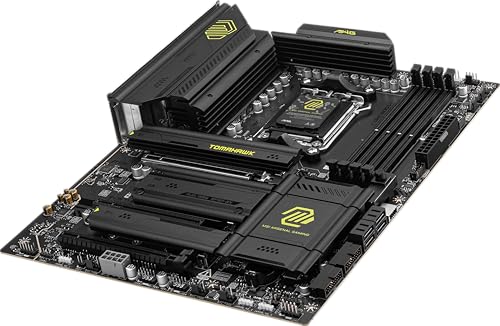

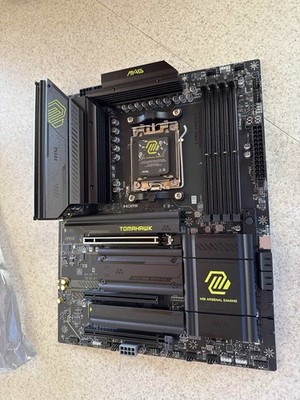

MAG X870 Tomahawk WiFi
The Tomahawk formula on X870: dual USB4, Wi-Fi 7, four M.2 and a 14+2+1 VRM at a price that leaves budget for the GPU.
Our verdict
The X870 Tomahawk is the board you buy when you want to stop thinking about the board: every modern port, a VRM with headroom, and MSI's tool-free EZ-DIY touches, all in the low-$200s. It is the default mid-range AM5 pick. Note it is the X870 (non-E) - the pricier X870E Tomahawk is a different board.
Best for: Mainstream Ryzen 9000 gaming builds that want modern I/O without premium-board pricing.
Skip it if: You need x8/x8 dual-GPU lanes or more than one Gen5 M.2 running flat out - that is X870E territory.
MSI MAG X870 Tomahawk WiFi
AMD X870 · AM5 · ATX · DDR5
$229.99
Tracked range: $227.99 - $229.99
Today's price is at or near the lowest we have tracked - a reasonable time to buy.
Chipset
X870
Socket
AM5
Form factor
ATX
RAM
4x DDR5 to 192GB
Full specifications
| CPU Support | AMD Ryzen 9000, 8000 and 7000 Series desktop processors |
|---|---|
| Socket | AMD AM5 |
| Chipset | AMD X870 |
| Power / VRM | 14+2+1 power stages (80A SPS), Duet Rail Power System, dual 8-pin CPU power |
| Memory | 4x DDR5 DIMM, dual channel, up to 256GB, up to 8400+ MT/s (OC), AMD EXPO |
| PCIe Slots | 1x PCIe 5.0 x16 (EZ PCIe release button) + additional slots to PCIe 3.0 x1 |
| M.2 | 4x M.2: 2x PCIe 5.0 x4, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2 (EZ M.2 Shield Frozr II latches) |
| SATA | 4x SATA 6Gb/s |

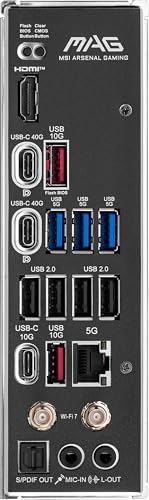

| Rear USB | 12 ports: 2x USB4 40Gbps Type-C, 1x USB 10Gbps Type-C, 2x USB 10Gbps Type-A, 3x USB 5Gbps Type-A, 4x USB 2.0 |
| LAN | Realtek RTL8126-CG 5Gbps Ethernet |
| Wireless | Wi-Fi 7 + Bluetooth 5.4 |
| Audio | Realtek ALC4080 codec, circuit-separated audio |
| Form Factor | ATX, 305 x 244 mm |
Transcribed from the manufacturer's official spec sheet - always confirm details there before buying.
Why buy it
- Dual USB4 40Gbps, Wi-Fi 7 and 5GbE at a mid-range price
- Four M.2 slots (two Gen5) with tool-free heatsink latches
- 14+2+1 80A power stages - more VRM than the class needs
Think twice if
- M.2_2/M.2_3 share lanes with USB4 - plan your SSD layout
- Fourth M.2 slot is only PCIe 4.0 x2
- No physical power button for open-bench tinkerers
What reviewers say
KitGuru
8.5/10Solid value with WiFi 7, strong VRM performance, and user-friendly installation features - it 'does a good job and has no obvious problems.' Criticisms: the fourth M.2 slot has limited utility and there is no physical power button.
Full review ↗The FPS Review
8/10Solid construction and a comprehensive feature set at a competitive price. The one gripe is M.2_2/M.2_3 performance compromises from lane-sharing between storage and USB4 that builders must navigate carefully.
Full review ↗Club386
4.5/5 - Editor's Choice'An improved design, better specs, and competitive price make this motherboard a must buy,' though performance gains over the X670E predecessor are only incremental.
Full review ↗Build around it
A full build starting from this board - picks computed from our live catalog, matched to the board's budget class.
CPU
AMD Ryzen 7 9800X3D
The strongest gaming CPU we track for AM5 - score 99/100 at ~$450.
GPU
NVIDIA RTX 5060 Ti
The best score-per-dollar in our GPU data - matches the value play this board is. Score 72/100 at ~$370.
RAM
Crucial Pro DDR5-6000 CL36 32GB (2x16GB)
DDR5-6000 CL36, 2x16GB - the cheapest kit on the X870 sweet spot at ~$395. Faster kits are mostly wasted money here.
Case
Phanteks XT PRO
Takes ATX with 435mm of GPU clearance - an airflow pick at ~$60.
Frequently Asked Questions
What CPUs does the MAG X870 Tomahawk WiFi support?
It uses the AMD X870 chipset on the AM5 socket. That means AMD Ryzen 7000, 8000, and 9000 series desktop CPUs, including X3D gaming chips. Check any specific pairing with our free bottleneck checker before you buy.
What RAM should I put in the MAG X870 Tomahawk WiFi?
It takes DDR5 in 4 slots (up to 192GB). The sweet spot on X870 is DDR5-6000 CL30 for the 1:1 Infinity Fabric ratio - faster kits cost more for little real-world gain. Our RAM advisor picks a kit for your exact use.
Will the MAG X870 Tomahawk WiFi fit my case?
It is an ATX board. Our case finder filters cases by the form factors they actually take.
How much does the MAG X870 Tomahawk WiFi cost?
As of our last price check it was $229.99. Across our tracking it has ranged from $227.99 to $229.99. The price on the retailer page is the real one.
