Best budget LGA1851 board

MAG B860 Tomahawk WiFi

The budget Tomahawk: PCIe 5.0, Wi-Fi 7, 5GbE and Thunderbolt 4 on B860 - most of the Z890 Tomahawk for less, minus the overclocking.

Our verdict

The B860 Tomahawk answers the question most Core Ultra builders should actually ask: why pay for Z890 if you will never overclock? You keep the Gen5 GPU slot and M.2, Wi-Fi 7, 5GbE and Thunderbolt 4, and give up CPU overclocking the chipset never allowed anyway. Tom's Hardware called it 'a more affordable Z890 alternative' - that is the whole pitch.

Best for: Sensible Core Ultra builds that were never going to overclock the CPU.

Skip it if: You want CPU overclocking or heavy rear-I/O modernity - four of the rear ports are USB 2.0.

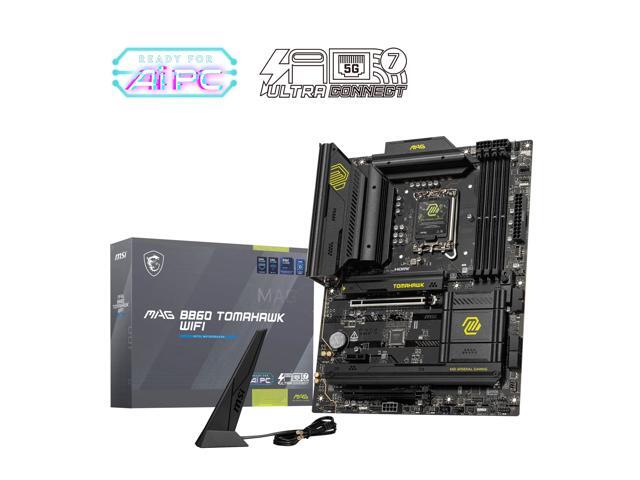

MSI MAG B860 Tomahawk WiFi

Intel B860 · LGA1851 · ATX · DDR5

$210

Check price →

Chipset

B860

Socket

LGA1851

Form factor

ATX

RAM

4x DDR5 to 192GB

Full specifications

CPU Support	Intel Core Ultra Processors (Series 2)
Socket	LGA 1851
Chipset	Intel B860
Power/VRM	12+1+1+1 Duet Rail Power System with 60A SPS, dual 8-pin CPU power
Memory	4x DIMM, Dual Channel DDR5-9200+ MT/s (OC), up to 256GB
PCIe Slots	1x PCIe 5.0 x16 + 2x PCIe 4.0 x16 (x4 electrical)
M.2 Storage	3x M.2: 1x Gen5 x4 (128Gbps) + 2x Gen4 x4, EZ M.2 Shield Frozr II
SATA	4x SATA 6Gbps
Rear USB	1x Thunderbolt 4 Type-C 40Gbps (also display out), 6x USB 10Gbps, 2x USB 5Gbps, 8x USB 2.0
Networking	Intel Killer E5000B 5G LAN + Killer Wi-Fi 7 BE1750x, Bluetooth 5.4
Display Outputs	Thunderbolt 4 Type-C, HDMI 2.1 FRL, DisplayPort 1.4
Audio	7.1-channel HD Audio with Audio Boost (Realtek ALC897)
Form Factor	ATX

Transcribed from the manufacturer's official spec sheet - always confirm details there before buying.

Why buy it

PCIe 5.0 GPU slot and Gen5 M.2 at a budget price
Thunderbolt 4, Wi-Fi 7 and Killer 5GbE - premium I/O on B860
VRM stayed around 40C under load in testing - thermals are a non-issue

Think twice if

No CPU overclocking - a B860 chipset limit, not a board flaw
Four rear USB 2.0 ports and a basic ALC897 audio codec show the cost-cutting
No debug LED display for troubleshooting

What reviewers say

Tom's Hardware

Titled 'A more affordable Z890 alternative' - a well-rounded, well-performing board offering the best of the budget platform (PCIe 5.0 slot and M.2 socket, Wi-Fi 7, 5GbE, Thunderbolt 4, EZ DIY features). Criticisms: slightly cheaper competing boards exist with similar configurations, and there is no integrated RGB lighting.

Full review ↗

Tech4Gamers

8.9/10 - Incredible Value

A mainstream offering with the best features at its price: Gen5 M.2 and reinforced PCIe 5.0 slot, Thunderbolt 4, WiFi 7 + Killer 5GbE, adequate VRM cooling and a user-friendly BIOS with EZ PCIe Release. Criticisms: no debug LED display and a basic Realtek ALC897 audio solution.

Full review ↗

The FPS Review

7.8/10

A well-built, feature-rich choice ~$70 cheaper than comparable Z890: thick heatsinks, EZ Release GPU/M.2 features, a robust 60A VCore VRM that stayed around 40C under load. Criticisms: no CPU overclocking (B860 limit), four USB 2.0 ports on the rear I/O, reduced DMI lanes to the chipset.

Full review ↗

PC Guide

4.5/5 - Best in Class

'Impressive performance and great value for money' - a solid LGA1851 option combining PCIe Gen5, WiFi 7, 5G LAN and Thunderbolt with excellent thermal results. Criticisms: no debug display, no onboard power/reset buttons, plain aesthetics, and a very slow BIOS flash process.

Full review ↗

Build around it

A full build starting from this board - picks computed from our live catalog, matched to the board's budget class.

CPU

Intel Core Ultra 7 270K Plus

The strongest gaming CPU we track for LGA1851 - score 93/100 at ~$312.

Check price →Verify the pairing

GPU

NVIDIA RTX 5060 Ti

The best score-per-dollar in our GPU data - matches the value play this board is. Score 72/100 at ~$370.

Which model to buy →Verify the pairing

RAM

Kingston FURY Renegade DDR5-6400 CL32 32GB (2x16GB)

DDR5-6400 CL32, 2x16GB - the cheapest kit on the B860 sweet spot at ~$278. Faster kits are mostly wasted money here.

Check price →Compare kits

Case

Phanteks XT PRO

Takes ATX with 435mm of GPU clearance - an airflow pick at ~$60.

Check price →Compare cases

Frequently Asked Questions

What CPUs does the MAG B860 Tomahawk WiFi support?

It uses the Intel B860 chipset on the LGA1851 socket. That means Intel Core Ultra (Series 2) desktop CPUs. Check any specific pairing with our free bottleneck checker before you buy.

What RAM should I put in the MAG B860 Tomahawk WiFi?

It takes DDR5 in 4 slots (up to 192GB). The sweet spot on B860 is DDR5-6400 - faster kits cost more for little real-world gain. Our RAM advisor picks a kit for your exact use.

Will the MAG B860 Tomahawk WiFi fit my case?

It is an ATX board. Our case finder filters cases by the form factors they actually take.

How much does the MAG B860 Tomahawk WiFi cost?

As of our last price check it was $210. The price on the retailer page is the real one.
