Best budget Micro-ATX Intel

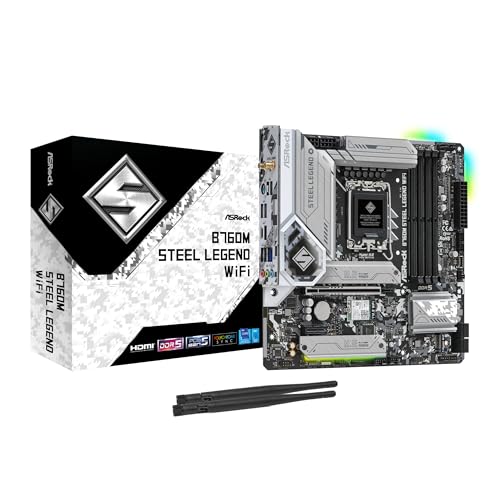

B760M Steel Legend WiFi
Three M.2, Wi-Fi 6E and even an eDP port at ~$140 - the Micro-ATX board for non-overclockers who want it done cheap and done right.
Our verdict
The B760M Steel Legend is the budget Intel answer: Tom's Hardware said it plainly - the most M.2 sockets in its class plus Wi-Fi 6E at the price, and it handled a Core i9 fine. B760 means no CPU overclocking, which most buyers at this price were never doing. DDR5 only - ASRock's DDR4 boards carry a /D4 suffix.
Best for: Compact budget builds on 12th-14th gen Intel that want maximum storage per dollar.
Skip it if: You want CPU overclocking or modern 20Gbps rear ports - that is Z-series territory.
Chipset
B760
Socket
LGA1700
Form factor
mATX
RAM
4x DDR5 to 128GB
Full specifications

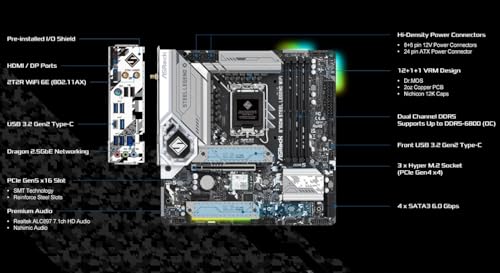

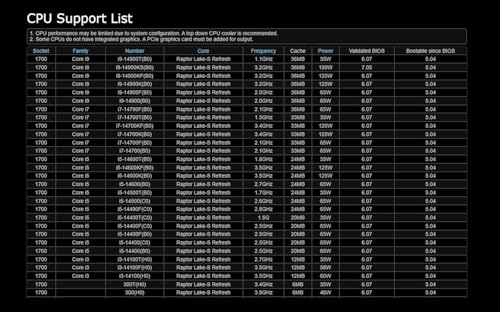

| CPU Support | 14th, 13th and 12th Gen Intel Core processors |
|---|---|
| Socket | Intel LGA1700 |
| Chipset | Intel B760 |
| Power / VRM | 12+1+1 phase with Dr.MOS; 6-layer 2oz copper PCB |
| Memory | 4x DDR5 DIMM, max 256GB, up to DDR5-7200+ (OC), XMP 3.0 (DDR5 only - no /D4 variant of this board) |
| PCIe Slots | 1x PCIe 5.0 x16 (CPU) + 1x PCIe 4.0 x1 |
| M.2 Storage | 3x M.2, all PCIe Gen4 x4 |
| SATA | 4x SATA3 6.0 Gb/s |
| Rear USB | 1x USB 3.2 Gen2 Type-A, 1x Gen2 Type-C, 4x Gen1, 2x USB 2.0 |
| Networking | Dragon RTL8125BG 2.5GbE; Wi-Fi 6E + Bluetooth 5.3 |
| Audio | Realtek ALC897 7.1CH with Nahimic Audio |
| Video Outputs | HDMI 2.1, DisplayPort 1.4 (DSC), eDP 1.4 |

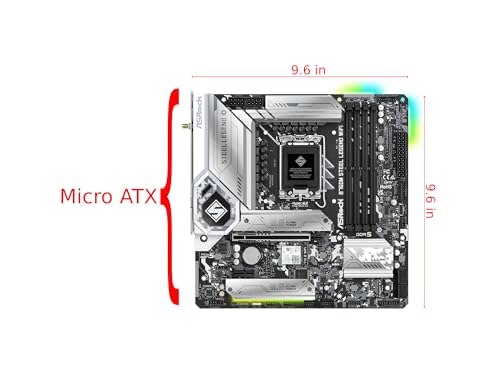

| Form Factor | Micro-ATX, 9.6 x 9.6 in |
Transcribed from the manufacturer's official spec sheet - always confirm details there before buying.
Why buy it
- Three M.2 sockets - the most in its class at this price
- Wi-Fi 6E, 2.5GbE and an eDP connector at ~$140
- Handled a Core i9 without drama in testing
Think twice if
- Dated ALC897 audio codec and no optical out
- Light rear USB count, nothing above 10Gbps
- No Gen5 M.2 - all three slots are Gen4
What reviewers say
Tom's Hardware
4/5 stars'We like what the B760M Steel Legend has to offer for its price. You get the most M.2 sockets in this class, plus integrated Wi-Fi 6E.' Called one of the best Micro-ATX options for the platform. Cons: lower USB count on the rear I/O, a dated audio codec, and stock performance that follows Intel power limits.
Full review ↗The FPS Review
8.5/10'Among the best values out there' for an Intel mATX board - praised the BIOS, build quality, and problem-free operation. Criticisms: the outdated ALC897 codec, no optical audio output, and DIMM locking tabs a graphics card can block.
Full review ↗Funky Kit
8.6/10A good-value micro-ATX board with very good performance, DDR5-7200+ OC support, PCIe 5.0 x16, Dragon 2.5G LAN and Wi-Fi 6E. Main criticism: no PCIe Gen5 M.2 slot.
Full review ↗Build around it
A full build starting from this board - picks computed from our live catalog, matched to the board's budget class.
CPU
Intel Core i9-14900K
The strongest gaming CPU we track for LGA1700 - score 96/100 at ~$459.
GPU
NVIDIA RTX 5060 Ti
The best score-per-dollar in our GPU data - matches the value play this board is. Score 72/100 at ~$370.
RAM
Crucial Pro DDR5-6000 CL36 32GB (2x16GB)
DDR5-6000 CL36, 2x16GB - the cheapest kit on the B760 sweet spot at ~$395. Faster kits are mostly wasted money here.
Case
Phanteks XT PRO
Takes mATX with 435mm of GPU clearance - an airflow pick at ~$60.
Frequently Asked Questions
What CPUs does the B760M Steel Legend WiFi support?
It uses the Intel B760 chipset on the LGA1700 socket. That means Intel Core Ultra (Series 2) desktop CPUs. Check any specific pairing with our free bottleneck checker before you buy.
What RAM should I put in the B760M Steel Legend WiFi?
It takes DDR5 in 4 slots (up to 128GB). The sweet spot on B760 is DDR5-6000 - faster kits cost more for little real-world gain. Our RAM advisor picks a kit for your exact use.
Will the B760M Steel Legend WiFi fit my case?
It is a mATX board. Our case finder filters cases by the form factors they actually take.
How much does the B760M Steel Legend WiFi cost?
As of our last price check it was $139.99. The price on the retailer page is the real one.
